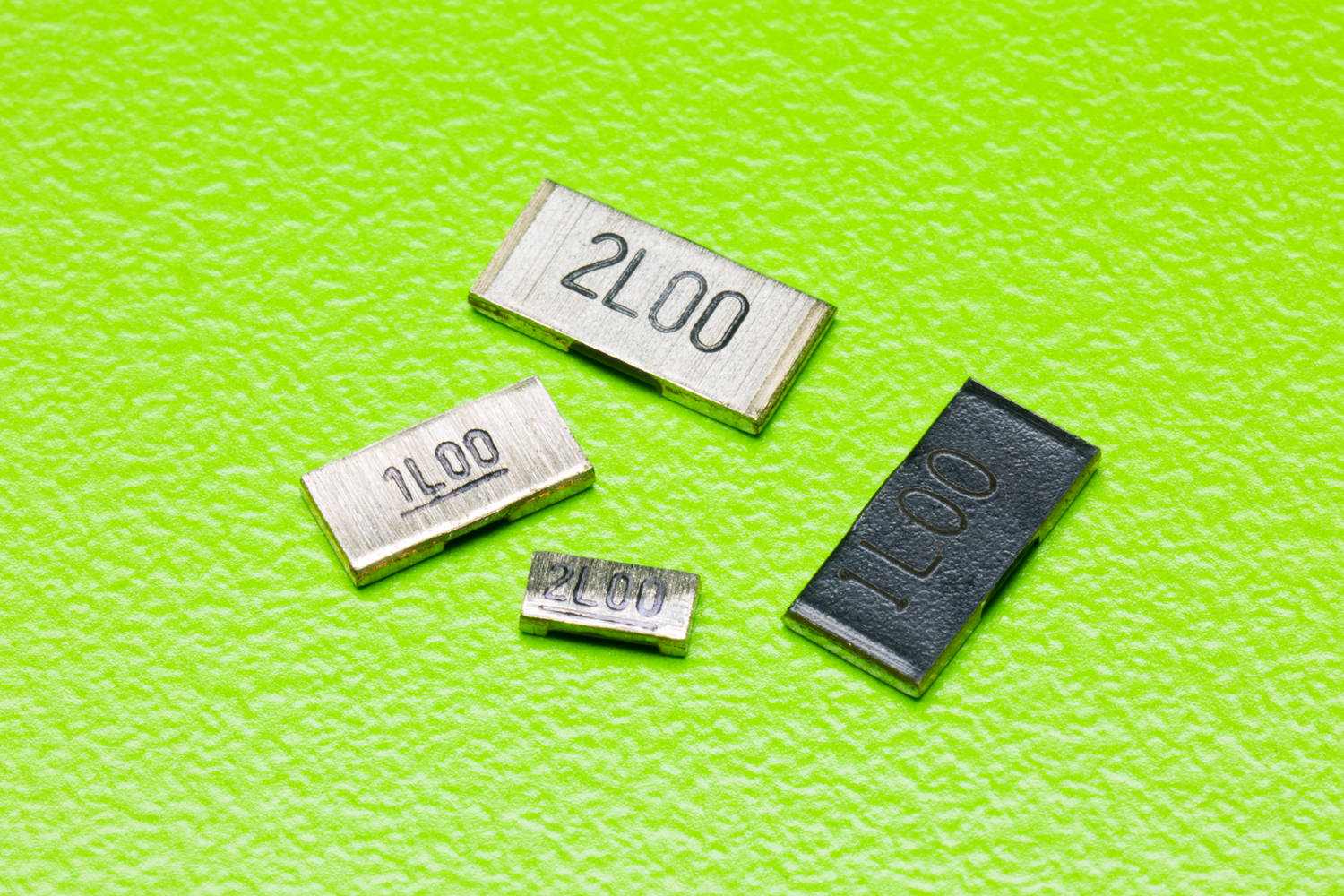

TLR (to 2W) Standard Power
- Home
- Products
- Resistors
- Current Sense / Shunt Resistors : Low Resistance
- Metal Plate
- TLR2B, 2H, 3A, 3AW
Features
- Ultra low height with a thickness of 0.6mm, suitable for use of small equipment
- Excellent high-frequency characteristics
- Ultra low resistances (0.5mΩ~), suitable for large current sensing
- Suitable for reflow soldering (Not suitable for flow soldering)
- Products meet EU RoHS and China RoHS requirements
- AEC-Q200 Tested

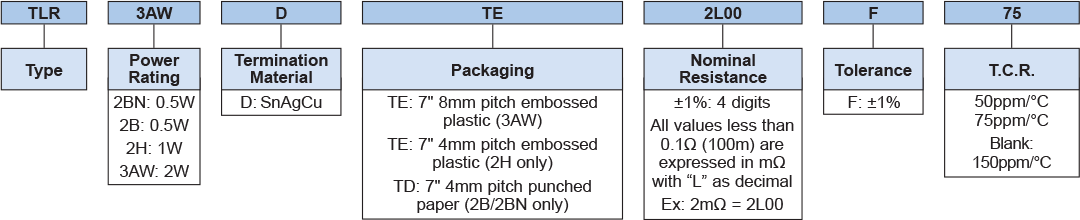

Ordering Information CHECK INVENTORY ORDER SAMPLES
Last Updated: 12/9/2022
